Carbide End Mill
Home > Carbide End Mill

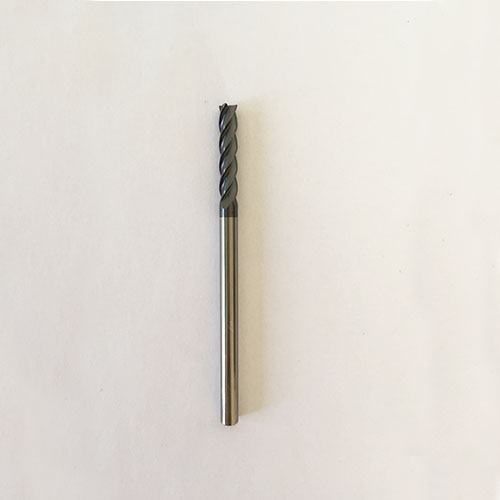

Extralarge Flat Endmill
Extralarge Flat Endmill

Extralarge Flat Endmill

We can also do the custom extralarge flat carbide endmills as per customers’ needs.
INQUIRY
Description
Extralarge Flat Carbide Endmill
With standard size in stock, also produce as customer's needs.

Application:
Used for stainless steel, cast iron, aluminum, copper, graphite, plastic parts, composite materials, titanium alloy, nickel, heat-resistant steel, non-alloy steel,steel < HRC58 .
extralarge flat carbide endmill
Dimensions for extralarge flat carbide endmill (mm):
Code            Cutting Diameter  Shank diameter  Cutting length    Total length
EY40-0100 1 4 22 75
EY40-0200 2 4 22 75
EY40-0300 3 4 22 75
EY40-0500 5 5 28 75
EY40-0600 6 6 28 75
EY40-0800 8 8 35 100
EY40-1000 10 10 35 100
EY40-1200 12 12 38 100
EY40-1400 14 14 45 150
EY40-1600 16 16 48 150
EY40-2000 20 20 65 200

EJ Carbide extralarge flat carbide end mill use very fine ultrafine particles 0.3m/mCo12% tungsten carbide as raw material,With high heat resistance and high lubricity AITiN PVD coating,Especially for wet high-speed cutting, stainless steel, alloy steel, mold steel ~ HRC58 of steel.
With a unique geometric angle of the special cutting edge design, so the chip smooth, stressed that can be used for processing ditch and side with large depth cutting, large feed heavy cutting.
TiAlN, CrN, TiAlCrN are newly developed hard coating materials. Its chemical stability and good anti-oxidation wear performance, with its processing of high alloy steel, stainless steel,mold steel, titanium alloy and nickel alloy,the tool life 3-4 times  higher than TiN coating.
In addition, if there is a suitable aluminum concentration in the TiAlN coating, a hard inert protective film is produced at the interface between the tool's rake face and the chip, and the film has better heat insulation and is more effective for high speed cutting.

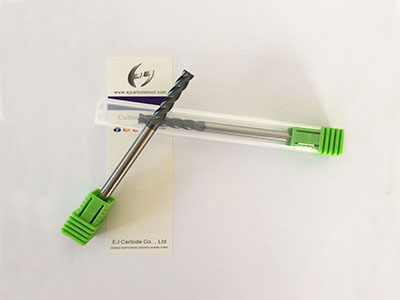

packing for extralarge flat endmill
