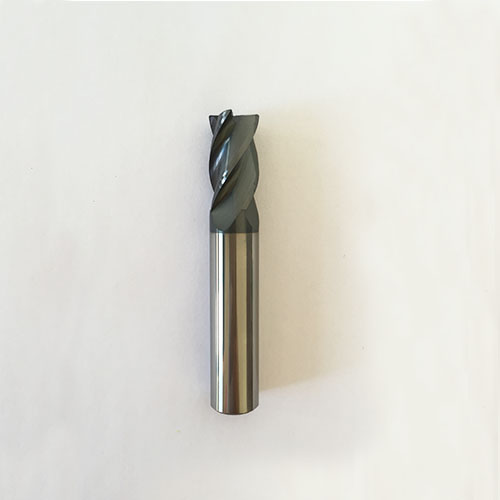

Carbide Straight Flat Endmill
Carbide Straight Flat Endmill

Carbide Straight Flat Endmill

We can also do the custom carbide straight flat endmill as per customers’ needs.
INQUIRY
Description
Carbide Straight Flat Endmill
With standard size in stock, also produce as customer's needs.

Application:
Used for stainless steel, cast iron, aluminum, copper, graphite, plastic parts, composite materials, titanium alloy, nickel, heat-resistant steel, non-alloy steel,steel < HRC62 .
carbide straight flat endmill
Dimensions for carbide straight flat end mill (mm):
Code            Cutting Diameter  Shank diameter  Cutting length    Total length
EY42-0100 4 4 8 50
EY42-0200 5 5 13 50
EY42-0300 6 6 16 50
EY42-0500 7 7 20 60
EY42-0600 8 8 20 60
EY42-0800 9 9 22 75
EY42-1000 10 10 25 75
EY42-1200 12 12 30 75
EY42-1400 14 14 32 75
EY42-1600 16 16 45 100
EY42-2000 20 20 45 100
EJ Carbide carbide straight flat end mill use very fine ultrafine particles 0.3m/mCo12% tungsten carbide as raw material,With high heat resistance and high lubricity AITiN PVD coating,Especially for wet high-speed cutting, stainless steel, alloy steel, mold steel ~ HRC62 of steel.
With a unique geometric angle of the special cutting edge design, so the chip smooth, stressed that can be used for processing ditch and side with large depth cutting, large feed heavy cutting.
TiAlN, CrN, TiAlCrN are newly developed hard coating materials. Its chemical stability and good anti-oxidation wear performance, with its processing of high alloy steel, stainless steel,mold steel, titanium alloy and nickel alloy,the tool life 3-4 times  higher than TiN coating.
In addition, if there is a suitable aluminum concentration in the TiAlN coating, a hard inert protective film is produced at the interface between the tool's rake face and the chip, and the film has better heat insulation and is more effective for high speed cutting.

Download price list for solid carbide end mill

packing for carbide straight flat end mill
