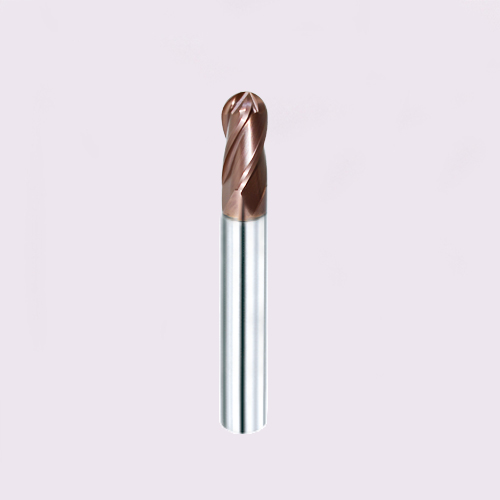

Carbide Ball Nose Endmill Four Flute
Carbide Ball Nose Endmill Four Flute

Carbide Ball Nose Endmill Four Flute

We can also do the custom ball nose carbide endmills as per customers’ needs.
INQUIRY
Description
Carbide Ball Nose Endmill
With standard size in stock, also produce as customer's needs.
carbide ball nose end mill
Application:
Used for stainless steel, cast iron, aluminum, copper, graphite, plastic parts, composite materials, titanium alloy, nickel, heat-resistant steel, non-alloy steel, low alloy steel <24HRC, high alloy steel <30HRC.

Dimensions for ball nose carbide endmill (mm):

Code D1         D           L1           L             R           Flute
EY30-0100 1 4 2 50 0.5 2/4
EY30-0150 1.5 4 3 50 0.75 2/4
EY30-0200 2 4 4 50 1 2/4
EY30-0250 2.5 4 5 50 1.25 2/4
EY30-0300 3 4 6 50 1.5 2/4
EY30-0350 3.5 4 7 50 1.75 2/4
EY30-0400 4 4 8 50 2 2/4
EY30-0500 5 6 10 50 2.5 2/4
EY30-0600 6 6 12 50 3 2/4
EY30-0700 7 8 15 60 3.5 2/4
EY30-0800 8 8 16 60 4 2/4
EY30-1000 10 10 20 75 5 2/4
EY30-1200 12 12 25 75 6 2/4
EY30-1400 14 14 28 100 7 2/4
EY30-1600 16 16 32 100 8 2/4
EY30-1800 18 18 36 100 9 2/4
EY30-2000 20 20 40 100 10 2/4
